Countinuous Belt Automatic Contact cooker

Contact cooker is an innovative cooking solution that sears and cooks products using only their natural fat. This distinctive technique locks in the product’s natural flavors, delivering a rich, savory taste. The machine also offers the flexibility to create grill marks or custom patterns, enhancing the visual appeal of the final product.

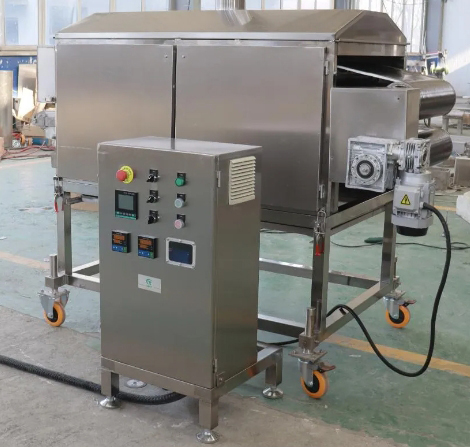

Products are cooked between upper and lower PTFE-coated belts, with heated plates powered by either electricity or thermal oil. These plates can be tailored to produce various grill effects, providing aesthetic versatility. Since the products cook in their own fat, no additional oil is needed, resulting in healthier, lighter dishes. Moreover, the contact heat cooking process minimizes weight loss, ensuring superior product quality and consistency.

Key Features of the Contact Cooker

1.Non-Stick Conveyor Belts: Ideal for processing marinated, wet, and sticky products without sticking.
2.Adjustable Belt Height: The space between the upper and lower belts can be adjusted to accommodate various product sizes and thicknesses.
3.High-Temperature Conduction Heat: Heats up to 260°C with independent control zones for single or double-sided cooking.
4.Continuous Belt-Cleaning System: Equipped with scrapers and high-pressure water jets to maintain cleanliness and ensure product quality.
5.User-Friendly Touch Screen: Simplifies control of conveyor speed, heating temperature, and cooking time for efficient operation.
6.Detachable Design: Allows for easy cleaning and maintenance, reducing downtime and improving convenience.
7.Hygienic Construction: Built with SUS304 stainless steel and food-grade non-metal materials, meeting HACCP standards for food safety.

The machine specification.

Model	AVN 600-II
Effective cooking width	560mm
Effective cooking length	1800mm
Power	61kw
Belt width	650mm
Conveyor belt speed	3-15m/min adjustable
Input height	1050±50mm
Output height	1050±50mm
Effective cooking height	5-50mm adjustable
Overall dimension	3400x1114x1700mm

Customer & Service

We shipped the machinery to numerous countries globally, including Italy, Germany, Russia, Turkey, Australia, Indonesia, India, etc. Our machines and service have received commendations from nearly every customer, fostering repeat business.

1.Twelve months following installation (Within 13 months of delivery).
2.Complimentary advisory service prior to, during, and post-sales.
3.Supply fundamental production methods and formulations.
4.International on-site setup and personalized training for machine maintenance and operation.
5.Calibration and examination of the machinery until all components are operational before departing the manufacturing facility.

Packaging & Shipping

1.Daub coal oil on the surface of the machines.
2.Plastic film as the inner packing.
3.Train, ship of depend on clients’ requirement.

FAQ

Q: What is the duration of machine warranty period?
A: Our guarantee spans one year from the commencement of operations.

Q: Are the machines made by stainless steel.
A: Yes, 304 food grade stainless steel.

Q: Can you describe the installation process?
A: We will deploy our skilled technicians to your facility to oversee the installation and commissioning tasks, providing training for your operators.

Q: If we share our factory layout, can you assist in designing the entire production line?
A: Certainly, our seasoned engineers and technical staff can aid in organizing the layout and overseeing the installation of the entire production line, tailored to your specific circumstances.

Q: What is the timeframe for your delivery?
A: Typically, it takes 7 – 10 days for stocked items, and 30 – 45 days for non-stock items, depending on the quantity.

Q: Will you provide support if issues arise during future production?
A: Absolutely, we are committed to being at your service. You can reach me through mobile, WhatsApp, Skype, Viber, WeChat, and more. I will promptly address and resolve any problems you encounter.

Welcome your inquiry on contact cooker.
